Rectangular copper magnet wire is widely used in electrical equipment such as transformers, generators, and electric vehicle motors. Compared with conventional round wire, rectangular conductors allow much more compact windings inside the slot, which improves power density, reduces weight, and increases electrical efficiency. For this reason, rectangular copper wire has become an important conductor in modern energy and electrification systems.
In industrial production, the process usually starts with round drawn copper wire that is gradually transformed into a rectangular profile through a multi-stand rolling process. Several rolling stages flatten the wire, form precise edge radii, and calibrate the final width and thickness so the conductor meets the strict dimensional tolerances required for enamel or paper insulation. Modern production lines typically use multiple rolling stands and precision control systems to maintain stable geometry and surface quality. As a professional manufacturer of wire rolling equipment, Our Sky Bluer China develops integrated rolling solutions that enable stable production of rectangular copper magnet wire for EV motors, transformers, and CTC conductors.

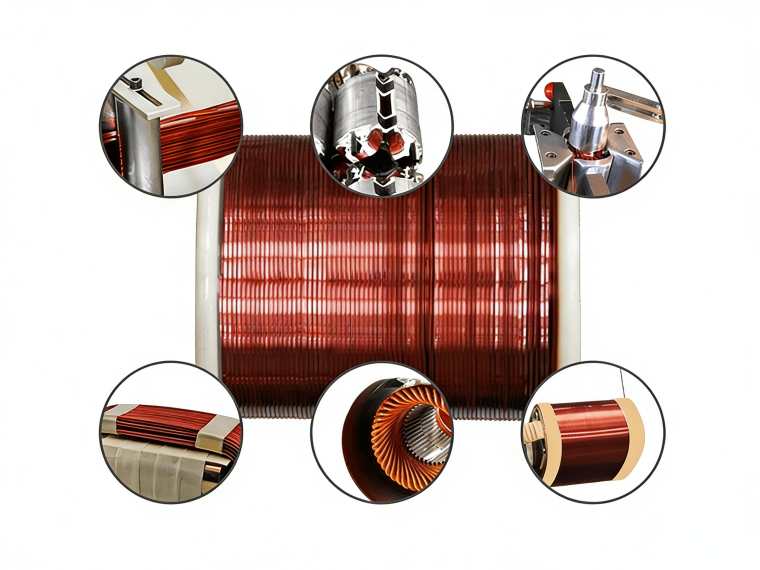

What Is Rectangular Magnet Wire?
Rectangular magnet wire is a type of insulated conductor made from high-purity copper that is formed into a rectangular or square cross-section instead of a conventional round shape. This geometry allows the conductor to be arranged more efficiently in stator slots or transformer windings, increasing the copper fill factor and improving electromagnetic performance. In industrial applications, rectangular copper magnet wire is commonly produced as enameled rectangular copper wire for electric motors and generators, or paper covered rectangular copper wire for transformer windings. Compared with traditional round wire, the flat conductor profile reduces empty space between windings, improves heat transfer between layers, and supports higher current density. As a result, rectangular magnet wire is widely used in high-efficiency equipment such as EV traction motors, high-frequency transformers, and advanced power electronics.
Why Rectangular Copper Magnet Wire Is Used in New Energy?
The rapid expansion of electric vehicles, renewable energy generation, and high-efficiency power systems has increased the demand for conductors that can deliver higher performance within compact designs. Rectangular copper magnet wire provides clear advantages for these applications because its flat geometry improves winding density and electrical efficiency. By fitting tightly into motor slots, flat copper magnet wire increases the copper fill rate and reduces resistive losses, enabling higher current capacity and improved energy efficiency. The larger surface contact between conductors also enhances heat dissipation, which is essential for high-power EV motors and modern transformer systems. In addition, compact winding structures made with rectangular copper wire for electric motors allow manufacturers to design smaller and lighter machines while maintaining high output power, making this conductor ideal for new energy technologies.
Typical Production Process of Rectangular Copper Wire
The production of rectangular copper magnet wire involves several carefully controlled processes to ensure dimensional accuracy, electrical conductivity, and insulation performance. In modern factories, these processes are typically integrated into automated rolling lines supplied by specialized equipment manufacturers such as Sky Bluer.
l Copper Rod Drawing
Production begins with high-purity copper rods (usually ≥99.95% copper). The rods are drawn through a series of dies to produce round copper wire with the required diameter.
l Multi-Stand Rolling
The round wire then enters a flat copper production line, where it passes through multiple rolling stands. Each rolling stage gradually converts the circular cross-section into a rectangular profile while controlling edge radius and thickness.
l Continuous Annealing
After rolling, the wire undergoes annealing at controlled temperatures to restore ductility and eliminate internal stress. Controlled atmosphere annealing helps maintain conductivity and prevents surface oxidation.
l Surface Cleaning
Before insulation, the copper surface is cleaned to remove rolling oil, oxides, and contaminants. Proper surface preparation ensures strong adhesion between copper and insulation layers.
l Insulation Coating
Depending on the application, different insulation systems are applied:
Enamel coating for enameled rectangular copper wire
Paper wrapping for paper covered rectangular copper wire
Multi-layer insulation for high-voltage transformer windings
l Quality Testing and Spooling
Finally, the finished rectangular copper magnet wire undergoes dimensional inspection, electrical testing, and insulation verification before being wound onto reels for shipment.

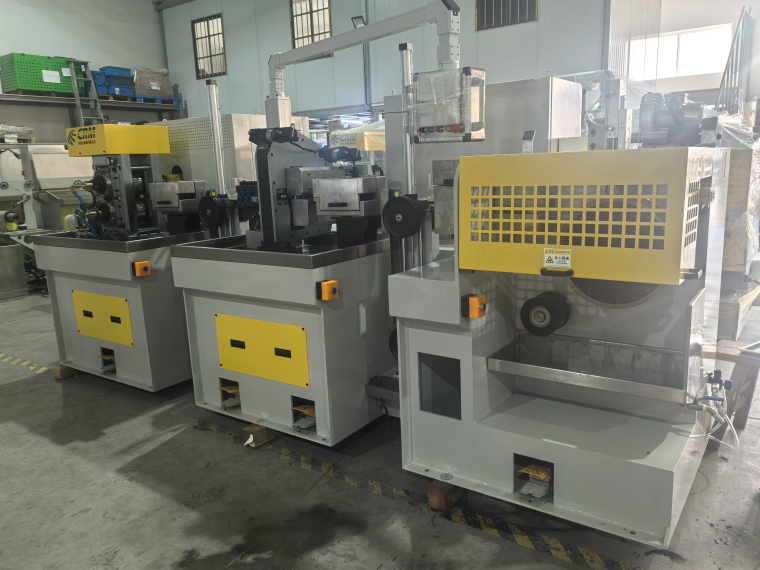

Equipment Used in Rectangular Wire Rolling Mills
A modern rectangular copper wire production line consists of several key pieces of equipment designed for high-precision forming and continuous operation. Sky Bluer specializes in designing and manufacturing rolling equipment and complete flat copper production lines used to produce rectangular copper magnet wire for motors, transformers, and other electrical equipment.
l Pay-Off System
The pay-off unit feeds the incoming round copper wire into the rolling mill at a controlled tension, ensuring stable processing conditions.
l Precision Rolling Stands
Multiple rolling stands equipped with tungsten carbide rollers gradually flatten the wire. High-precision rolling mills can achieve dimensional tolerances as tight as ±0.01 mm.
Integrated annealing systems restore the ductility of the copper after deformation while maintaining high electrical conductivity.
l Surface Cleaning Units
Mechanical brushing and chemical cleaning systems remove surface contaminants to ensure proper insulation adhesion.
l Take-Up and Spooling System
A precision take-up system winds the finished flat copper magnet wire onto reels while maintaining uniform tension and coil quality.
These integrated systems allow modern manufacturers to produce rectangular copper wire at speeds exceeding 100 m/min while maintaining consistent geometry and surface quality. Advanced rolling mills developed by Sky Bluer China are engineered to support high-precision production with stable tension control, accurate roll adjustment, and reliable surface quality.
Key Technical Requirements for Magnet Wire Production
Manufacturing high-quality rectangular magnet wire requires strict control over multiple technical parameters. High-precision rolling equipment from manufacturers such as Sky Bluer plays a critical role in maintaining these tolerances during continuous production.
The following table shows typical technical parameters for enameled rectangular copper wire and paper covered rectangular copper wire used in electric motors and transformers.
Parameter | Typical Range | Description |
Conductor Material | Oxygen-free copper (≥99.95%) | High purity copper ensures excellent electrical conductivity and mechanical strength |
Conductor Shape | Rectangular / Square | Designed for high slot fill factor in motors and transformers |
Width Range | 1.5 mm – 12.5 mm | Common dimension for flat copper magnet wire |
Thickness Range | 0.5 mm – 5.6 mm | Controlled through precision rolling mills |
Dimensional Tolerance | ±0.01 mm – ±0.02 mm | Ensures accurate coil winding and slot fitting |
Electrical Conductivity | ≥100% IACS | Guarantees low electrical resistance |
Insulation Type | Polyester, Polyimide, Paper covering | Selected based on operating temperature and voltage |
Insulation Thickness | 0.02 mm – 0.05 mm (enameled) | Multi-layer enamel coating for magnet wire |
Thermal Class | 180°C – 220°C | Suitable for EV motor magnet wire and industrial motors |
Edge Radius | R0.2 – R1.0 | Controlled rolling ensures smooth edges and insulation protection |
Surface Quality | Smooth, oxidation-free | Ensures reliable enamel adhesion |
Applications | EV motors, transformers, generators, CTC conductor copper wire | Used in high-power electrical equipment |
Applications in EV Motors and Transformers for magnet wire Production line
Rectangular copper magnet wire plays a critical role in modern electrical equipment manufacturing.

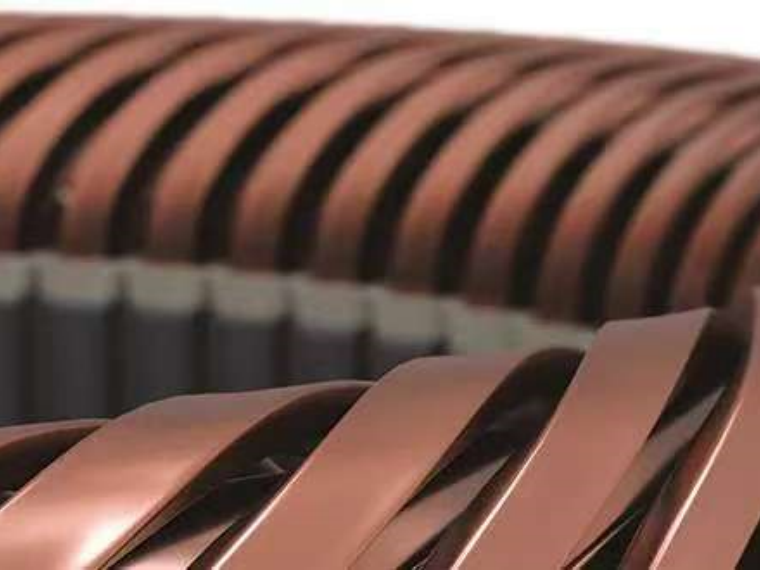

l Electric Vehicle Motors
EV traction motors require high current density and compact winding structures. Rectangular copper wire for EV motors increases power density and improves motor efficiency.
l Power Transformers
Paper-covered rectangular copper wire and CTC conductor copper wire are widely used in power transformers. The rectangular geometry improves conductor packing density and reduces electrical losses.
l Industrial Motors
High-power motors used in manufacturing, rail systems, and energy infrastructure also rely on flat copper magnet wire for improved performance.
l Renewable Energy Equipment
Generators used in wind turbines and hydroelectric systems often use transformer magnet wire and rectangular windings to maximize efficiency and reliability.
Wire Rolling vs Wire Drawing: What’s the Difference
Wire rolling and wire drawing are two key metal forming processes used in the production of conductors such as rectangular copper magnet wire and traditional round wire. Wire drawing is a tensile deformation process in which a copper rod or wire is pulled through a series of dies to gradually reduce its diameter. This process is widely used to produce round copper wire with smooth surfaces and consistent diameter before further processing. In contrast, wire rolling is a compressive forming process in which the conductor passes through multiple rolling stands equipped with precision rollers that gradually flatten and shape the wire into a rectangular profile. Rolling is essential for producing rectangular magnet wire and flat copper magnet wire because it allows precise control of width, thickness, and edge radius while maintaining excellent surface quality. In many production lines for rectangular copper wire for electric motors or transformer magnet wire, wire drawing is used in the initial stage to create the base round wire, while multi-stand rolling mills are used afterward to form the final rectangular geometry required for high-performance electrical windings.
What Are the Technical Specifications of Enameled Rectangular Copper Wire?
At Sky Bluer, we design and manufacture equipment rolling capable of producing high-precision enameled rectangular copper wire for demanding electrical applications such as transformers, motors, and high-efficiency power equipment.
Our production line systems process rectangular conductors with thickness (a) ranging from 0.3 mm to 10 mm and width (b) from 1 mm to 22 mm. Through precise rolling control and stable enamel coating processes, we ensure consistent conductor geometry, excellent insulation performance, and reliable electrical conductivity.
Sky Bluer engineers develop these wires to operate under multiple thermal classes, including 120°C, 180°C, 200°C, 220°C, and 240°C, allowing manufacturers to select the appropriate insulation system for different thermal loads and operating environments.
We also engineer the enamel insulation layer to deliver advanced functional properties, including:
l Solderable insulation, which enables efficient termination during coil manufacturing
l Self-bonding capability, which allows the conductor layers to bond together during heat activation, improving coil rigidity and reducing vibration
Our production technology complies with major international standards, including IEC, NEMA, GB, JIS, and UL, ensuring compatibility with global electrical manufacturing requirements.
Copper Magnet Wire Trends in EVs, Renewable Energy, and Power Electronics
As electrification accelerates worldwide, the demand for high-performance magnet wire continues to grow. Several industry trends are driving the evolution of rectangular copper magnet wire technology.
l Growth of Electric Vehicles
Electric vehicle production is rapidly increasing, leading to higher demand for EV motor magnet wire and high-temperature insulation systems.
l Higher Power Density Motors
Advanced motor designs require conductors that maximize copper utilization within limited space, making rectangular wire the preferred solution.
l Automation of Magnet Wire Production
Modern flat copper production lines now incorporate automated control systems, real-time monitoring, and digital quality management to maintain consistent production quality.
l Development of High-Temperature Insulation
New insulation materials allow magnet wires to operate at temperatures above 200°C, supporting the next generation of high-efficiency motors and power electronics.
With these developments, rectangular copper magnet wire will remain a critical component in the global transition toward electrification and sustainable energy systems.
FAQ
Q1: What products and services does Sky Bluer provide?
A: Sky Bluer Environmental Technology Co., Ltd, as a leading Chinese manufacturer of metal processing equipment, delivers complete wire production lines as well as individual components such as rolling stands, turks head mills,chilers,sedgers, pay-off and take-up systems. Beyond equipment, we offer process consulting, technical training, R&D support, and after-sales services, ensuring customers achieve optimal performance, precision, and efficiency in their magnet wire production.
Q2: What is a rectangular copper magnet wire production line?
A: Our production lines are designed to convert round drawn copper wire into high-precision rectangular magnet wire. Each line integrates multi-stand rolling mills, motorized edgers, tension control systems, filtration for lubricants, and continuous gauge monitoring, enabling consistent width, thickness, and edge radius. This ensures finished wire meets strict tolerances required for enameled flat wire, paper-covered wire, or CTC conductors.
Q3: Why is rectangular copper magnet wire preferred over round wire?
A: Rectangular conductors significantly improve slot fill factor, current density, and heat dissipation in electrical windings. They reduce energy loss and allow more compact, lightweight, and efficient motor and transformer designs. Sky Bluer Environmental Technology Co., Ltd machines ensure the precise geometry required for these demanding new energy applications, including EV motors, high-efficiency transformers, and renewable energy equipment.
Q4: Can Sky Bluer Environmental Technology Co., Ltd provide turnkey solutions or only individual machines?
A: Sky Bluer Environmental Technology Co., Ltd offers both complete turnkey production lines and customized individual equipment. Each solution is tailored to your existing plant layout, raw material packaging, and customer specifications. Customers receive a full 3D layout for approval, ensuring seamless integration and optimized workflow from pay-off to take-up.
Q5: What technical standards and tolerances do Sky Bluer rolling mills achieve?
A: Our lines are engineered for high precision. Typical tolerances for rectangular copper wire are ±0.005 mm thickness under stable operating conditions. With calibrated roll gaps, parallelism adjustment, tension control, and stable lubrication, Sky Bluer Environmental Technology Co., Ltd machines maintain consistent geometry even at high production speeds.
Q6: How does Sky Bluer support installation, commissioning, and maintenance?
A: We provide on-site installation guidance, commissioning support, and operator training, ensuring your line runs at full capacity from day one. Additionally, we offer online technical support, preventive maintenance programs, and parts supply, minimizing downtime and maximizing wire quality and throughput.
Q7: What are the key parameters controlled during rectangular copper wire rolling?
A: During production, critical parameters include roll gap calibration, edge radius, wire tension, surface lubrication, and temperature control. Sky Bluer’s lines use motorized screwdown systems, parallelism adjustment, and continuous gauge measurement to maintain tight dimensional tolerances (typically ±0.005 mm). Proper control of these variables ensures consistent wire geometry, smooth surfaces, and optimal winding performance in EV motors, transformers, and CTC conductors.
Q8：What is Enameled Rectangular Copper Wire?
Conclusion
At Sky Bluer Environmental Technology Co., Ltd, we design and manufacture advanced equipment for rectangular copper wire and flat wire production. We understand that you may be looking for a complete production line or specific spare parts. At Sky Bluer, our engineering team not only manufactures reliable machines but also provides comprehensive process guidance, production layout design, accessories, and technical support to help you achieve stable and high-efficiency manufacturing.
Whether you are producing magnet wire for EV motors, transformers, or new energy applications, we can recommend the most suitable rolling solutions for your production requirements.
Contact our engineering team today to receive a customized technical proposal.
