We are leading manufacturers of Solar PV busbar equipment, essential for the optimal efficiency and functionality of solar panels. Solar PV busbars play a critical role in this process. If you’re seeking a reliable partner for high-quality solar busbar and solar ribbon equipment, Sky Bluer Industries China is your trusted source. Read on to discover more

PV Busbar Line Components:

· Payoff unit or integration with a rolling mill/drawing machine

· Annealing and surface preparation

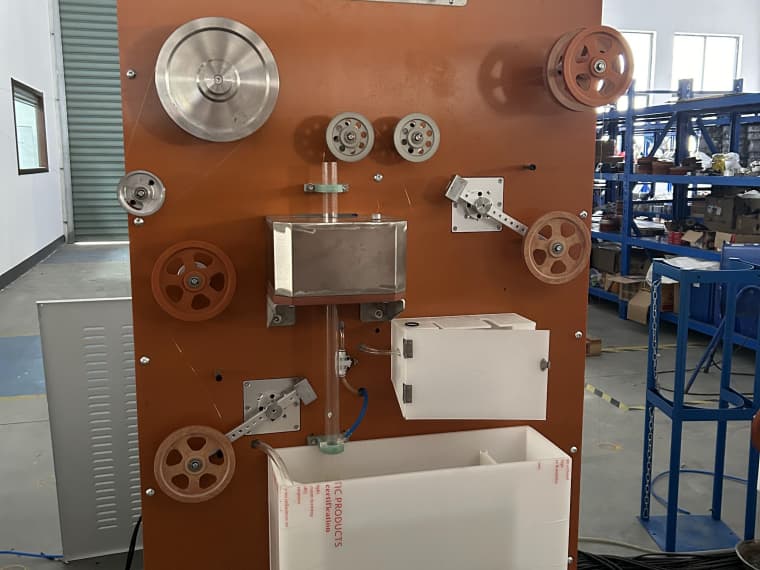

· Tinning and wiping processes

· Flux application

· Take-up system with online measurement

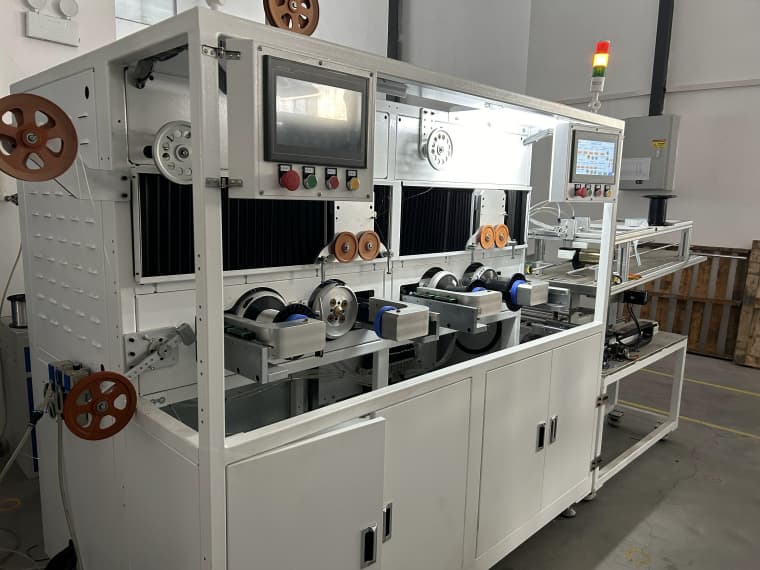

Solar PV Busbar Production Line

A solar PV busbar equipment is to produce metallic strip or bar that conducts electricity within photovoltaic (PV) solar panels. It gathers the electrical current generated by the solar cells and directs it into the panel's wiring system, ultimately linking to the wider electrical grid or a storage system.

Technical Details for Solar PV Busbar Production Line:

What Is a PV Module Busbar?
A PV module busbar, also known as a V cell busbar or V cell busbar standard, PV Cell Busbar, PV Inverter and Busbar, it is a metallic strip integrated into silicon PV cells. These cells feature soldering points on both the front and back surfaces, specifically designed for the busbars. Positioned as contact strips, the busbars facilitate the transfer of electrical current from the solar panels to the inverter circuit.

What Is the Function of Busbar Production Line In Solar Panel?

Photovoltaic busbars are mainly used in solar photovoltaic power generation systems and are electrical connection devices that connect multiple solar photovoltaic modules. ‌

The main function of the photovoltaic busbar is to collect and optimize the power of multiple solar photovoltaic modules. It collects the power of multiple photovoltaic modules through the busbar and then outputs it to the meter or other equipment. The photovoltaic busbar is usually composed of buses of different voltage levels. The common voltage levels are 1000V and 1500V. The connection methods include foil connection and plug connection‌1.

What Is the Working Principle of Photovoltaic Busbar Production Line?

The working principle of the photovoltaic busbar machine is to complete the collection, rectification, combination and voltage adjustment of power through the protection elements and control elements in the combiner box, collect the power input from multiple channels into one channel, and provide it to the generator, combiner cabinet, meter and other equipment for use. In addition, the photovoltaic busbar can also adjust the voltage and current according to the system requirements to meet different load requirements, thereby improving the overall available electrical capacity and energy saving effect of the system‌1.

The Designs of Solar PV Busbar Equipment

The design of the photovoltaic busbar production line takes safety and reliability into consideration, and adopts a closed structure to prevent dust and moisture from intruding to ensure the stable operation of the system. At the same time, the photovoltaic bus also has intelligent control functions, which can realize intelligent control of the circuit through a computer or microcomputer system and connect to remote control equipment to adapt to different voltage and current requirements and further optimize system performance1.

A solar busbar is a small, thin strip made of aluminum or copper. It sits between the solar cells inside a panel. Its job is to separate the cells and carry the direct current from the cells to the inverter. The inverter changes this current into useful alternating current.

Your Comprehensive Solar PV Ribbon and Busbar Solution for Precision Industrial Needs
We offer a complete range of components to meet your solar PV ribbon and busbar requirements, including high-speed PV ribbon lines, PV ribbon annealing and tinning lines, and busbar production lines. Additionally, we provide customization services tailored to your specific needs. Explore our product offerings and contact us to learn how we can support your projects!
