Many users are actively searching for a machine that can produce flat wire, but often struggle to choose the right one. Selecting a suitable machine depends on understanding how flat wire is made and which equipment fits your production needs.
Flat wire plays a vital role across multiple industries—from solar photovoltaic (PV) ribbons and EV battery connectors to precision springs and electronics. To help you make an informed decision, this article explains how flat wire is produced and introduces the most commonly used machines for flat wire manufacturing. We'll highlight each machine's function, key advantages, and typical applications to guide your selection process.

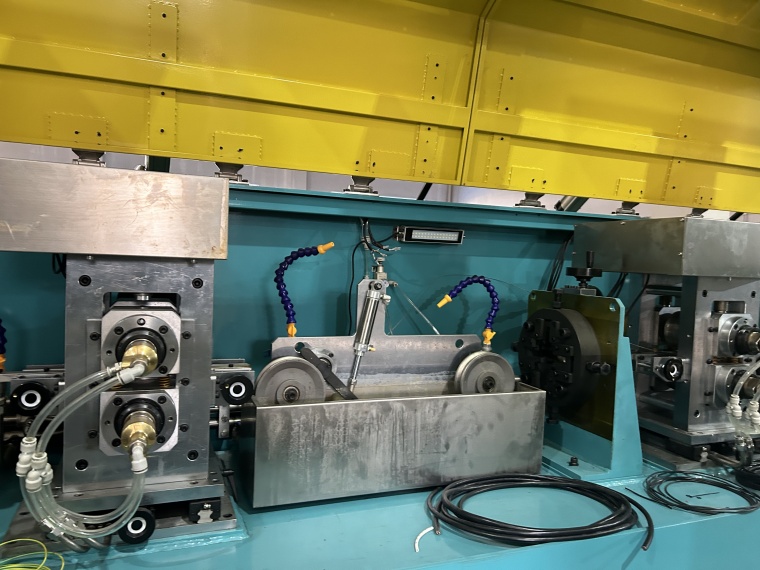

1. Flat Wire Rolling Mill
Also known as a wire flattening machine or flattener, the flat wire rolling mill is the most commonly used equipment for producing flat wire. It flattens round or pre-drawn wire by passing it through a series of precision rolls. Depending on the wire material and production requirements, the mill can be configured with:
2-high or 4-high roll setups
Manual or servo-controlled gap adjustments
Carbide or tool steel rolls
Single-pass or multi-pass rolling stages
Cold rolling or hot rolling modes
Flat wire rolling mills are ideal for processing materials such as copper, stainless steel, carbon steel, titanium, and various alloys. These machines are widely used in industries that demand high surface quality and tight thickness tolerances, including electronics, automotive, and renewable energy sectors.

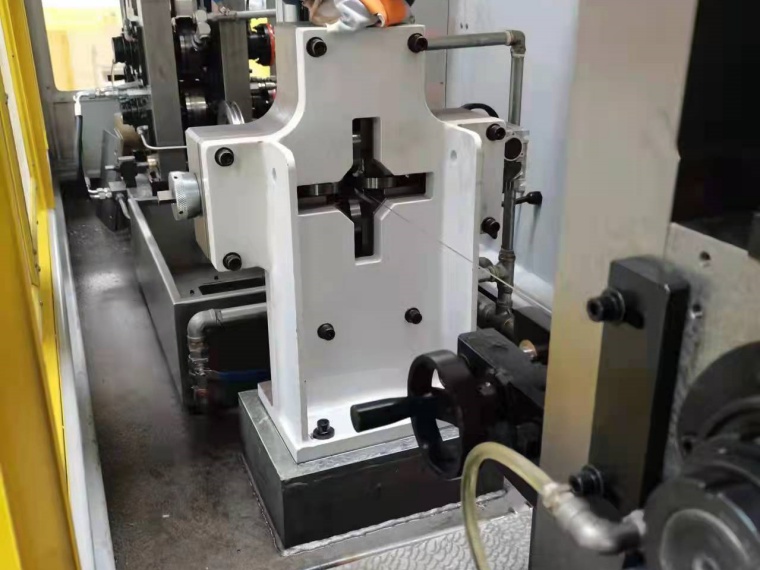

2. Turks Head Machine
A Turks head machine is commonly used for forming and sizing flat or shaped wire. Unlike flattening rolling mills, it uses four forming rolls arranged in an "X" configuration. While not a primary flattening machine, it is excellent for final shaping, squaring, or adjusting the dimensions of already flattened wire.
Key Benefits:
Fine-tuning width and thickness
High dimensional control
Suitable for continuous inline production
The four-roll Turkshead is designed for forming steel or other metal round wires into high-precision, custom-shaped wire profiles.
Modular design with roll positioning controlled by motor or digital position display.
Modular design allows the four rolling stages to be used either in a universal configuration for square or rectangular flat wires, or in a symmetrical layout.

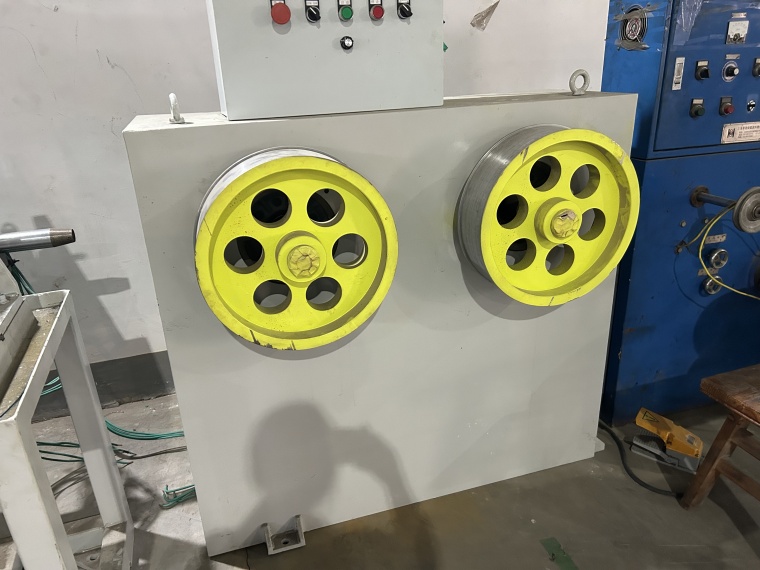

3. Wire Drawing Machine
Purpose: Reduces the diameter of round wire by pulling it through a series of dies.
Type: Dry or wet wire drawing machines.
Material Input: Usually round wire rods

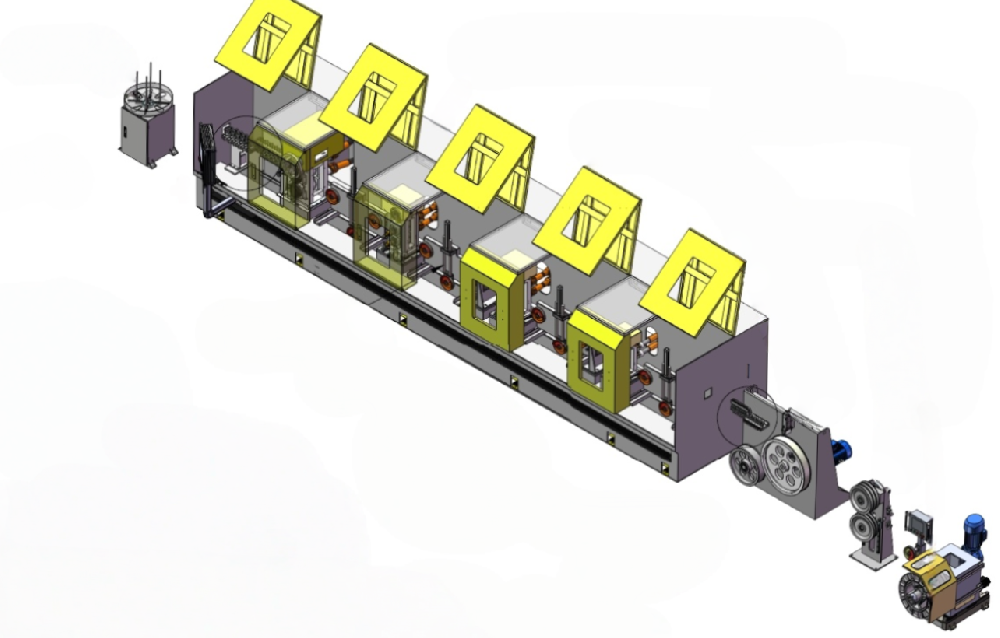

In actual wire production, wire drawing machines play a crucial role in manufacturing flat and shaped wires. Common models include flat wire drawing machines, rectangular wire drawing machines, and shaped wire drawing machines. By equipping these machines with roller dies, flat wire can be produced efficiently and with consistent precision. The raw material used is typically round wire.
Through this article, you should now have a clearer understanding of the main machine models used in flat wire production. If you can share more information with me — such as the condition of your raw materials, their diameter, tensile strength, and hardness — I will be able to recommend a more suitable machine model for your specific needs.
